E-CON by IDS-Technology

E-CON – products & solutions from IDS-Technology

“Fully withdrawable is our standard – safety is our promise!”

Would you like to implement a high degree of flexibility and a customized design? Would you like to continue using your own slide-in technology without any restrictions and keep the economic efficiency in your own hands?

We from IDS-Technology have the solution and offer you all the support you need!

We present our product series E-CON s.i., E-CON modular and E-CON smart.

Here you can download our brochure…

IDS Technology Brochure

Economic Advantages:

  • Exclusive Access: Limited number of licensees ensures reduced competition among partners.
  • Global Market Potential: The system can be marketed and implemented worldwide, with no regional restrictions.
  • Cost Efficiency: Offers a substantial price advantage combined with superior and advanced technology.
  • Unique Selling Proposition: Distinctive features set the system apart from all competitors.
  • Flexibility: Compatible with electrical components from any manufacturer, providing maximum adaptability.
  • Value Creation: High potential for partners to generate added value through customized solutions.
E-CON s.i. | IDS-Technology

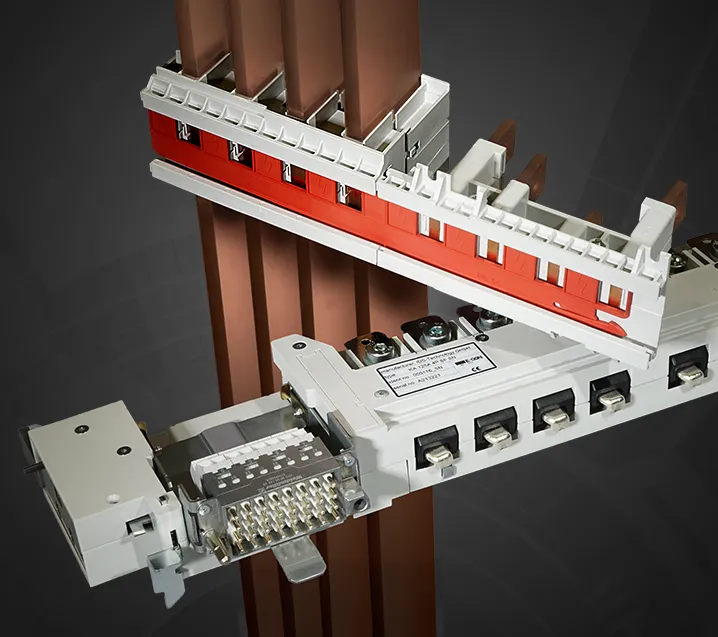

E-CON s.i.

Only 3 components for a fully withdrawable switchboard system

read more
E-CON modular | IDS-Technology

E-CON modular

Only a few components for a fully withdrawable switchboard system with maximum flexibility

read more
E-CON smart | IDS-Technology

E-CON smart

The smart solution for efficient energy tapping

read more

E-CON s.i.

Only 3 components for a fully withdrawable switchboard system

7
E-CON s.i. | Fully Withdrawable Switchgear Technology by IDS-Technology GmbH

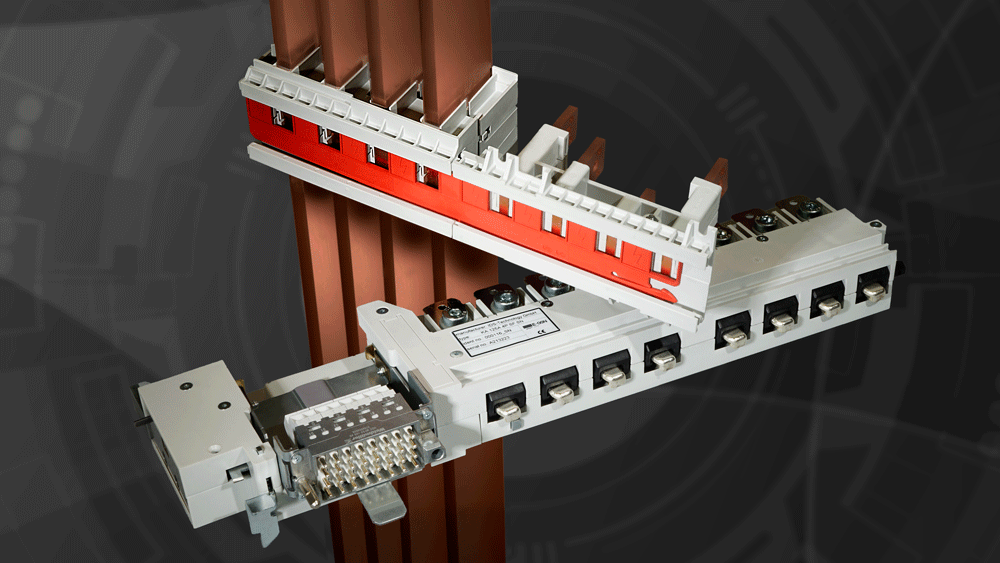

E-CON s.i.

(energy-control; solution integrated )

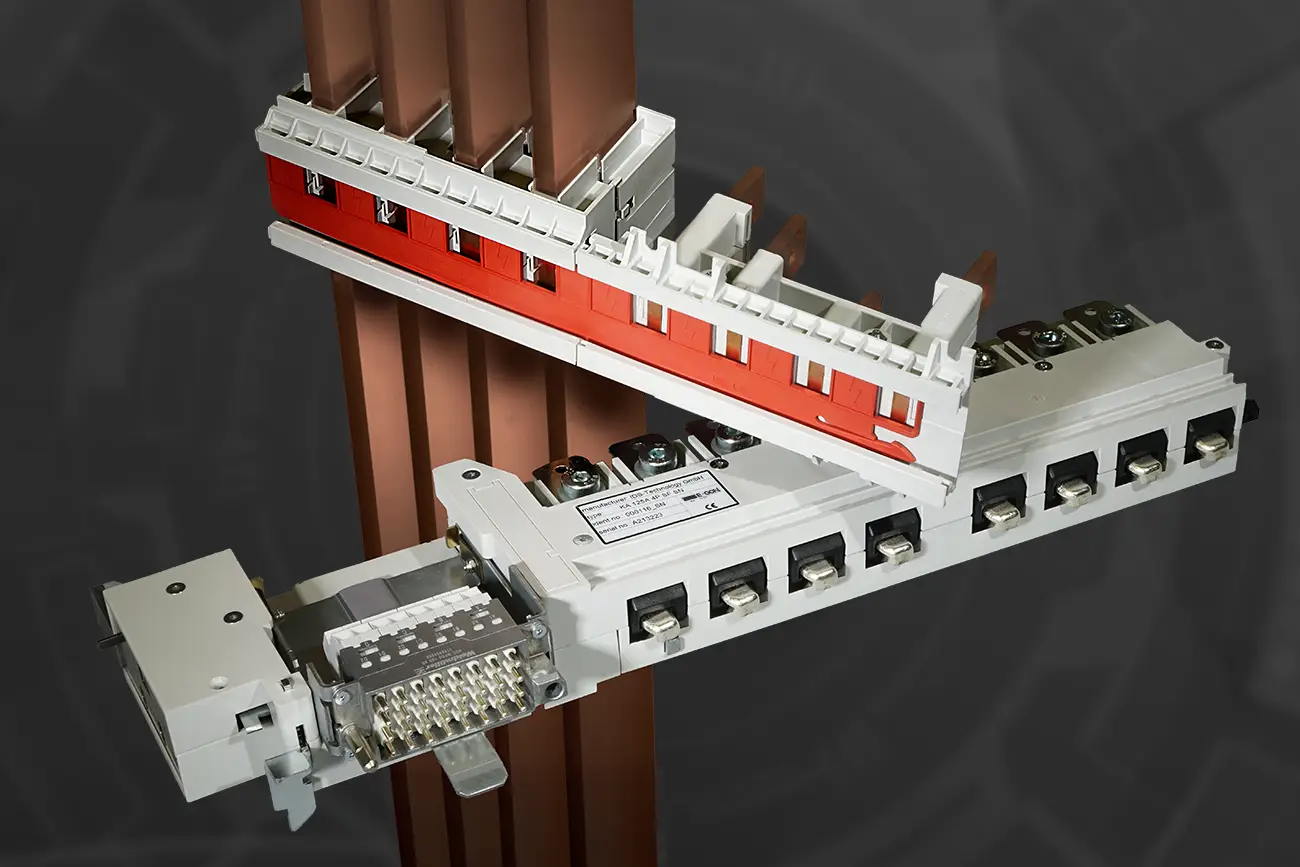

Only 3 components for a fully withdrawable switchboard system

(contact module, cable module, busbar module)

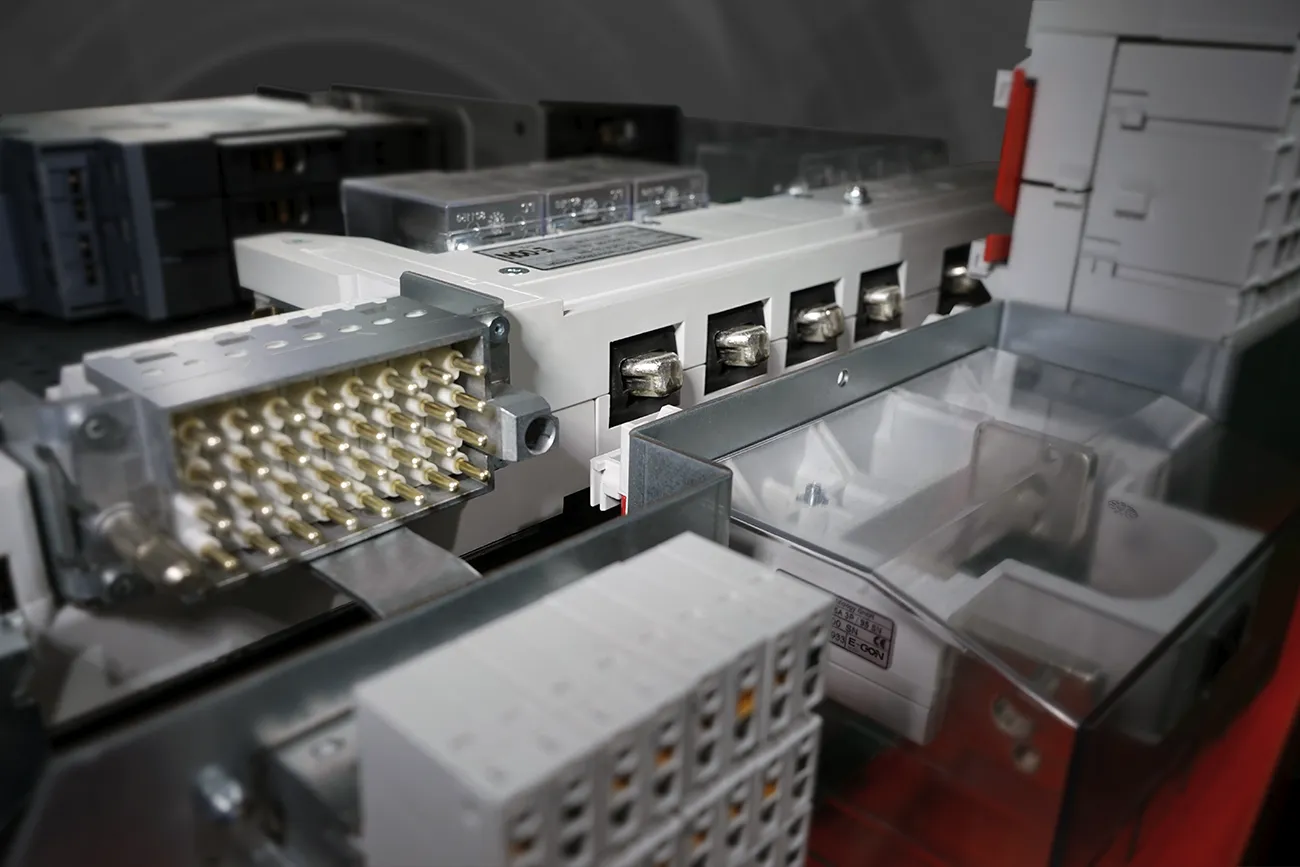

The contact module provides all the essential functions of a traditional drawer unit, including:

  • Two 4-pole power pressure contacts ( up to 630 A)
  • Control plug holder for all kind of brands
  • Mechanical test and operating positions
  • Necessary mechanical interlocks for fail-safe operation

This standardized module, with a single consistent size (up to 315 A), minimizes mechanical effort and simplifies system configuration.

E-CON System s.i. | IDS-Technology GmbH

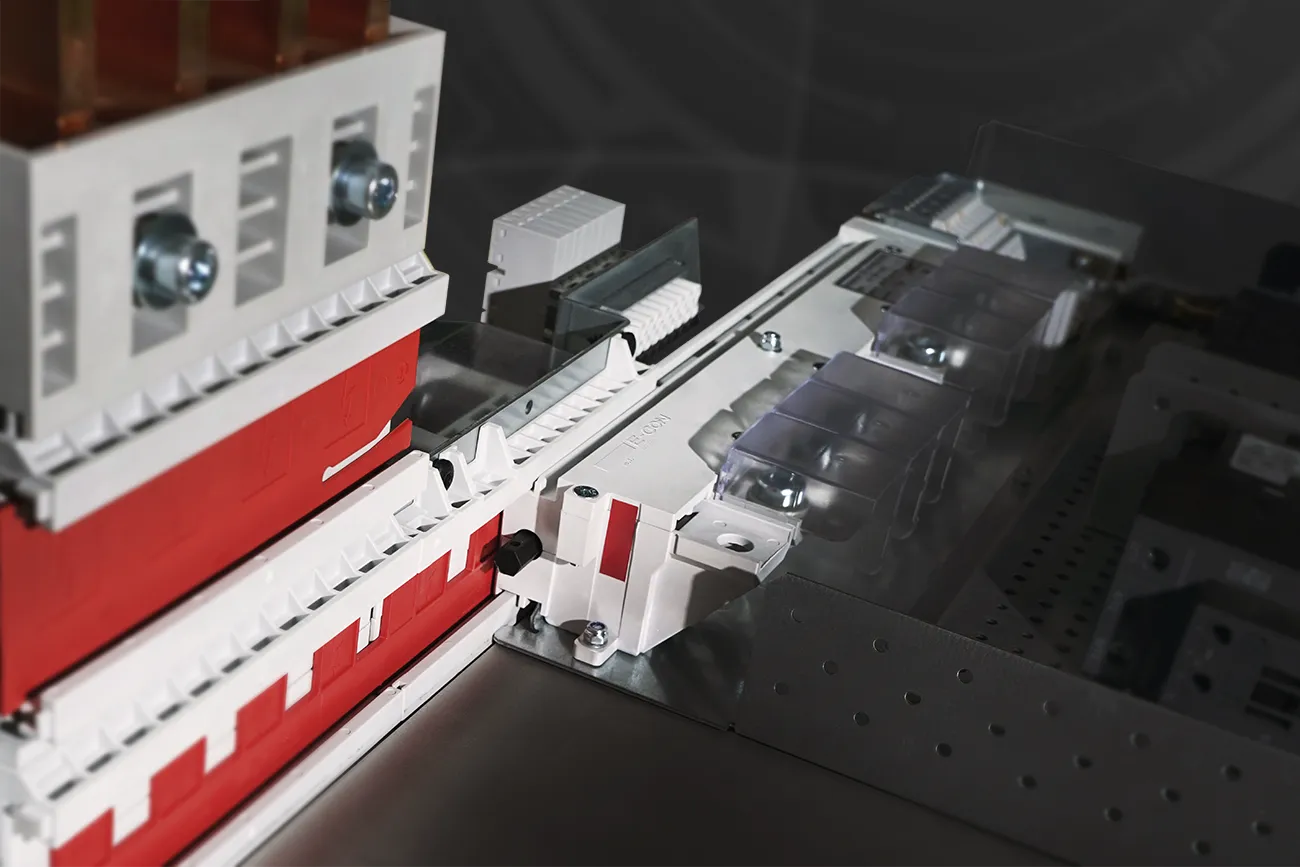

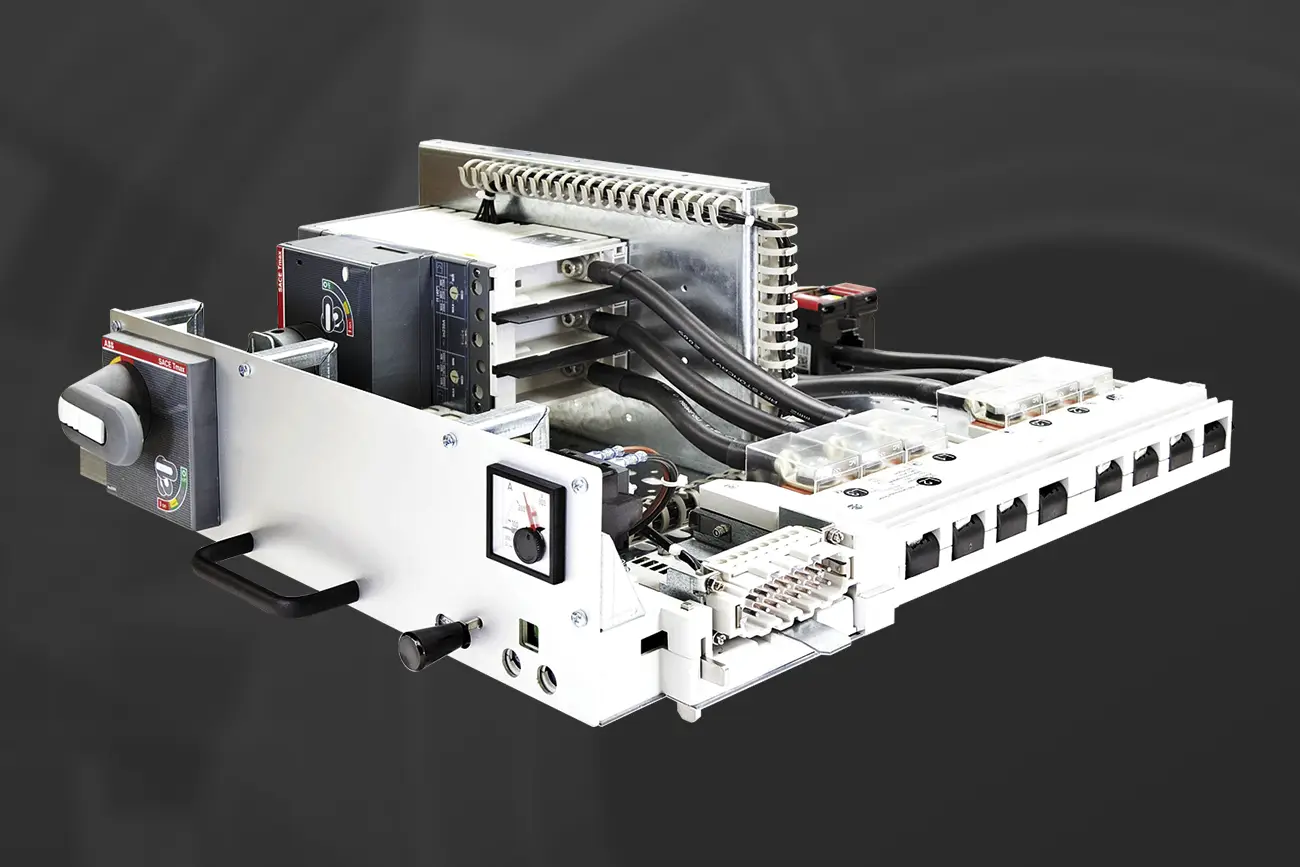

By combining the contact module with electrical switching and protection devices mounted on a common metal plate, a new draw-out technology is created.

This modular approach allows:

  • Motor starters up to 22 kW to fit into a 75 mm unit height
  • Components up to 250 kW to fit into a 225 mm unit height

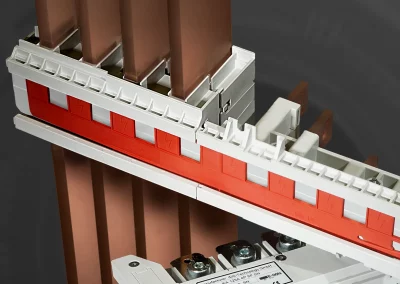

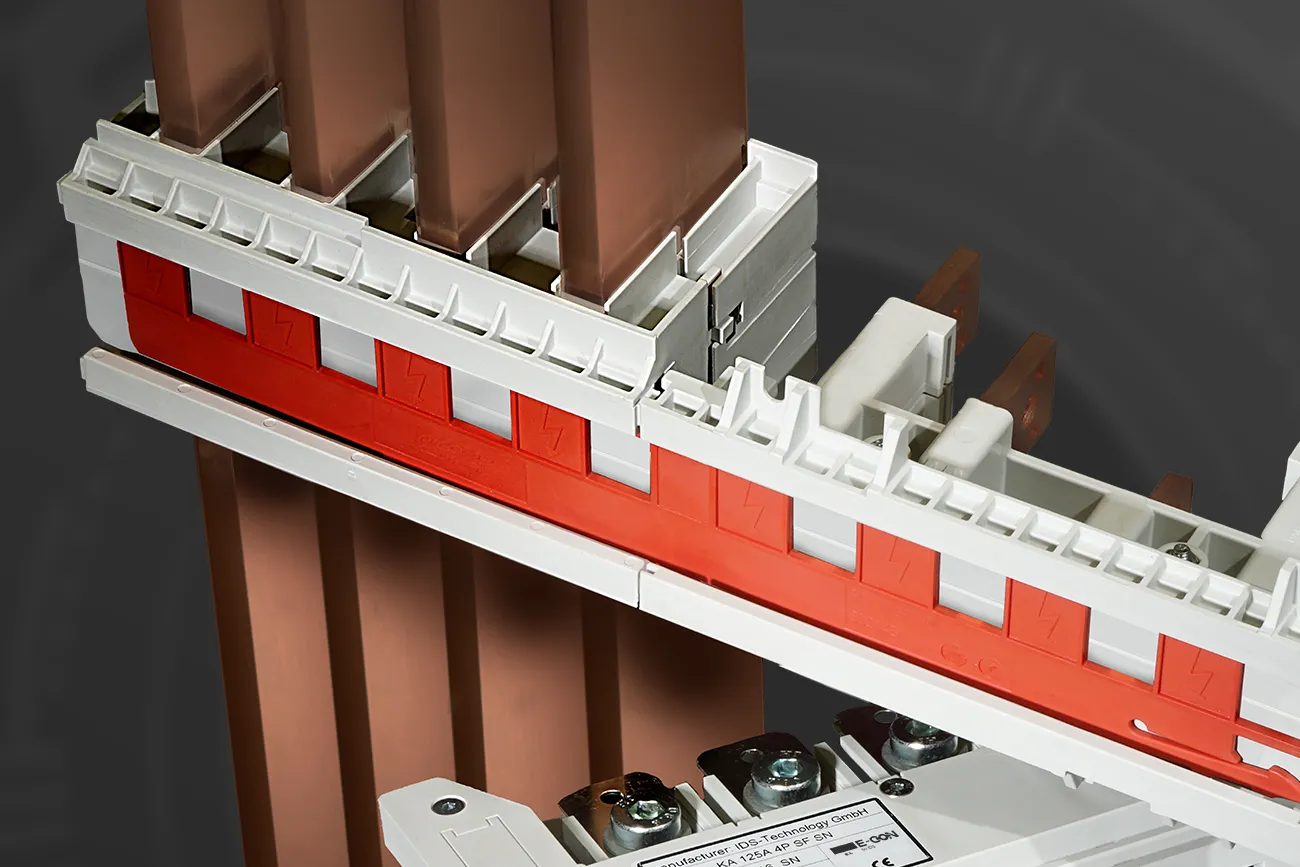

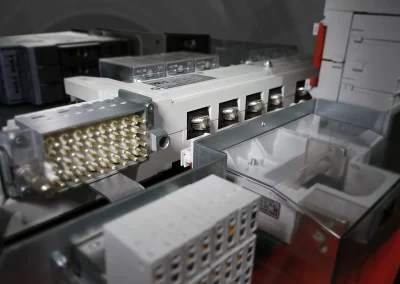

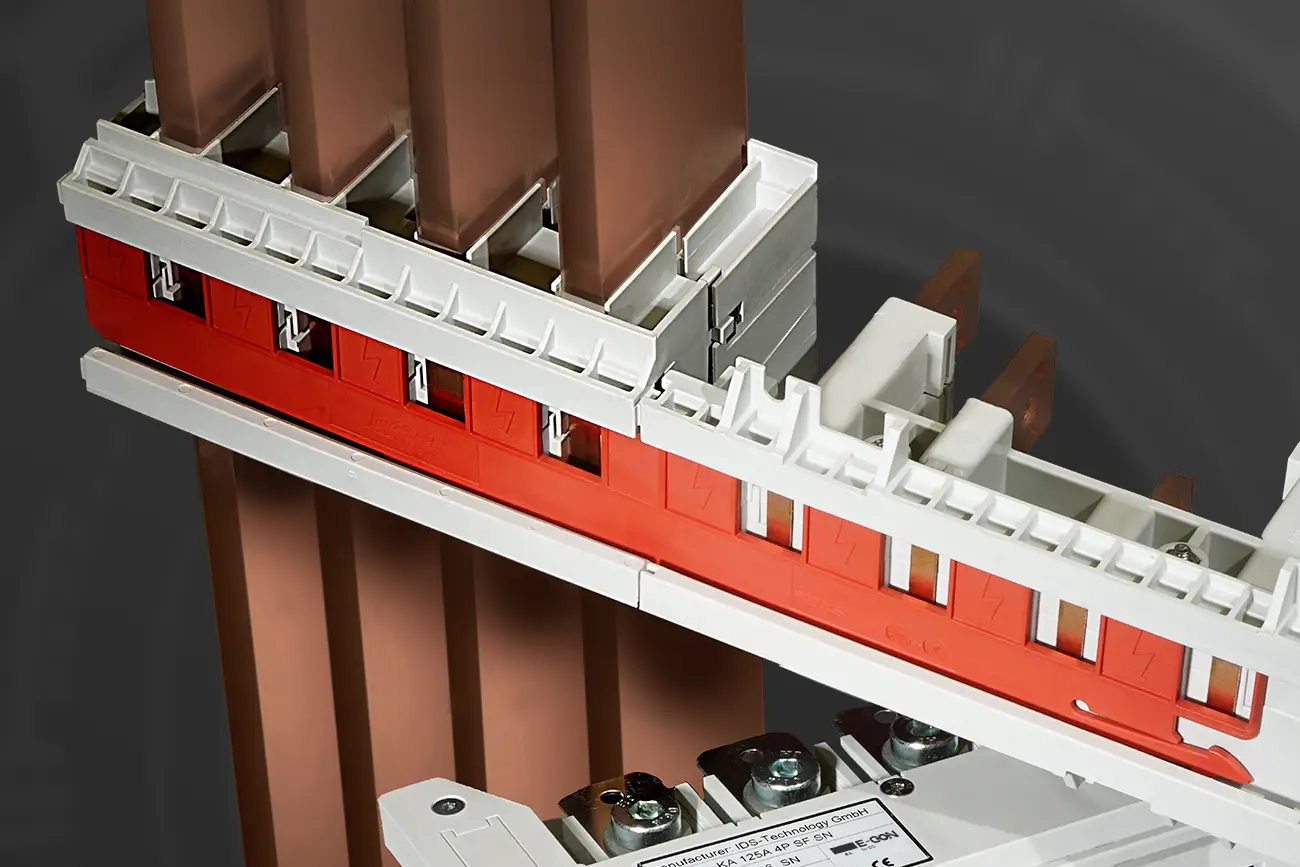

The movable and switchable contact module, together with the insulators of the vertical bus section (busbar module) and the cable connection side (cable module), forms an arc-ignition protected zone, ensuring maximum safety and reliability.

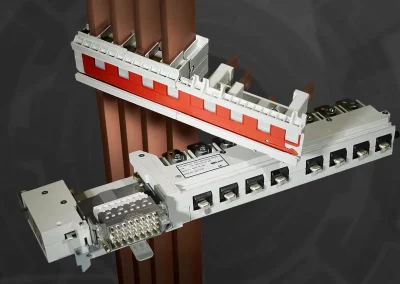

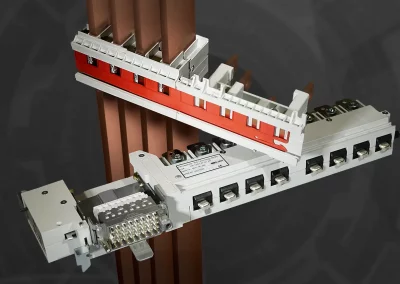

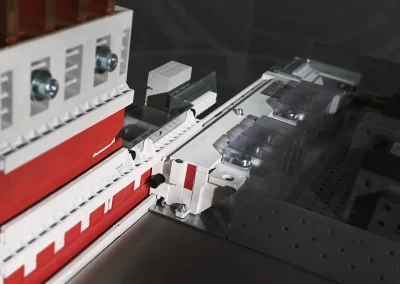

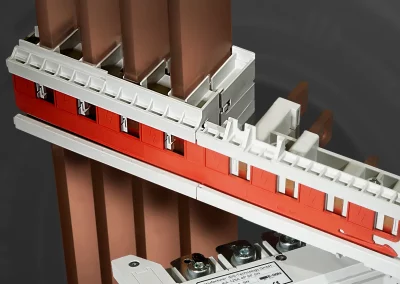

E-CON s.i. by IDS-Technology: fully withdrawable switchgear technology with just three modules. Compact, safe, and flexible — for motor starters up to 22 kW and systems up to 250 kW.
E-CON s.i. by IDS-Technology: fully withdrawable switchgear technology with just three modules. Compact, safe, and flexible — for motor starters up to 22 kW and systems up to 250 kW.
E-CON s.i. by IDS-Technology: fully withdrawable switchgear technology with just three modules. Compact, safe, and flexible — for motor starters up to 22 kW and systems up to 250 kW.
E-CON s.i. by IDS-Technology: fully withdrawable switchgear technology with just three modules. Compact, safe, and flexible — for motor starters up to 22 kW and systems up to 250 kW.
E-CON s.i. by IDS-Technology: fully withdrawable switchgear technology with just three modules. Compact, safe, and flexible — for motor starters up to 22 kW and systems up to 250 kW.
E-CON s.i. by IDS-Technology: fully withdrawable switchgear technology with just three modules. Compact, safe, and flexible — for motor starters up to 22 kW and systems up to 250 kW.
E-CON s.i. by IDS-Technology: fully withdrawable switchgear technology with just three modules. Compact, safe, and flexible — for motor starters up to 22 kW and systems up to 250 kW.

E-CON modular

Only a few components for a fully withdrawable switchboard system with maximum flexibility
IDS-Technology GmbH - D-54634 Bitburg - Rheinland-Pfalz, Germany | Coming soon
7
E-CON modular | Maximum Flexibility for Modern Withdrawable Technology by IDS-Technology GmbH

E-CON modular

(energy-control; modular )

Only a few components for a fully withdrawable switchboard system with maximum flexibility

(contact module, power clip, cable module, interlocking module, control plug slide unit )

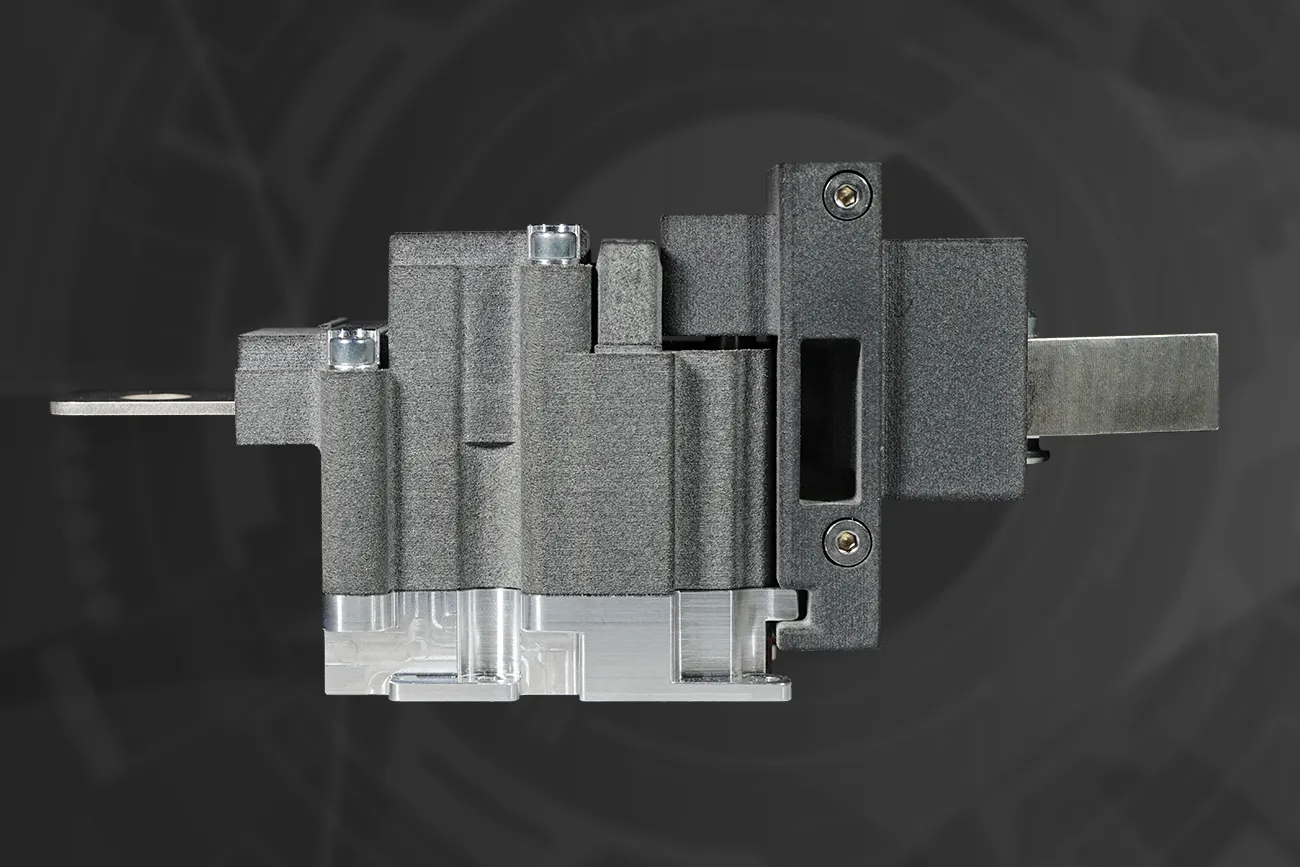

The E-CON modular system integrates all essential features of conventional withdrawable technology in a modern, flexible concept.


  • Flexible pole positioning
  • Patented Lambda contact system (up to 630 A)
  • Control plug holder compatible with all kind of brands
  • Mechanical test and operating positions
  • Necessary mechanical interlocks for fail-safe operation

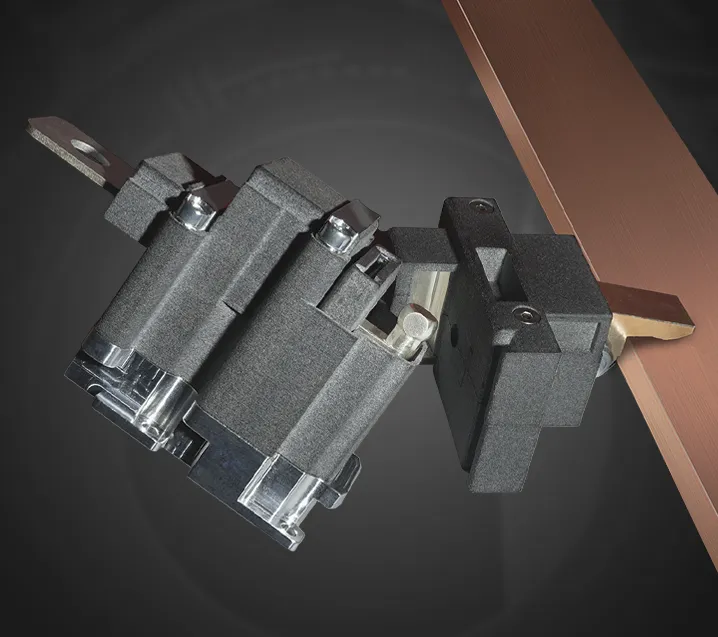

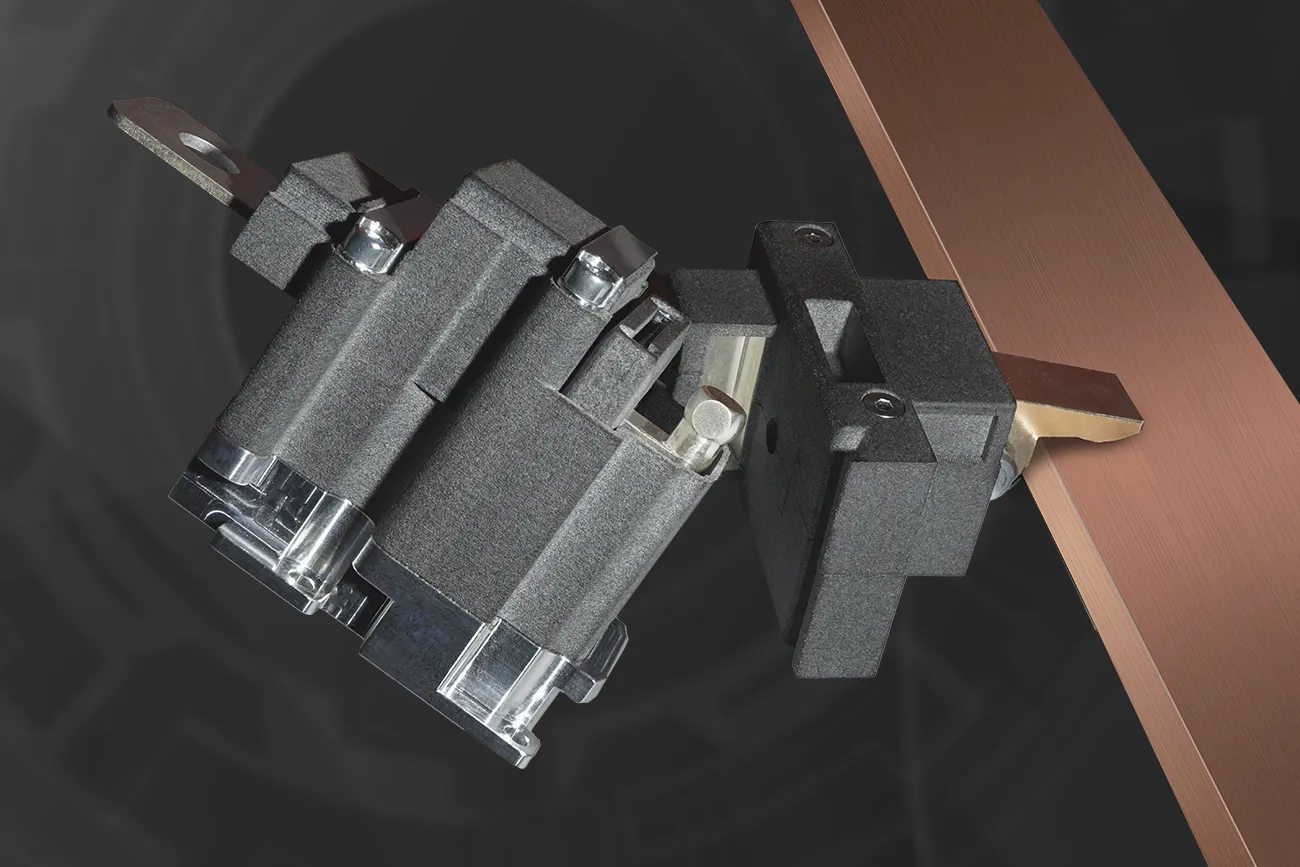

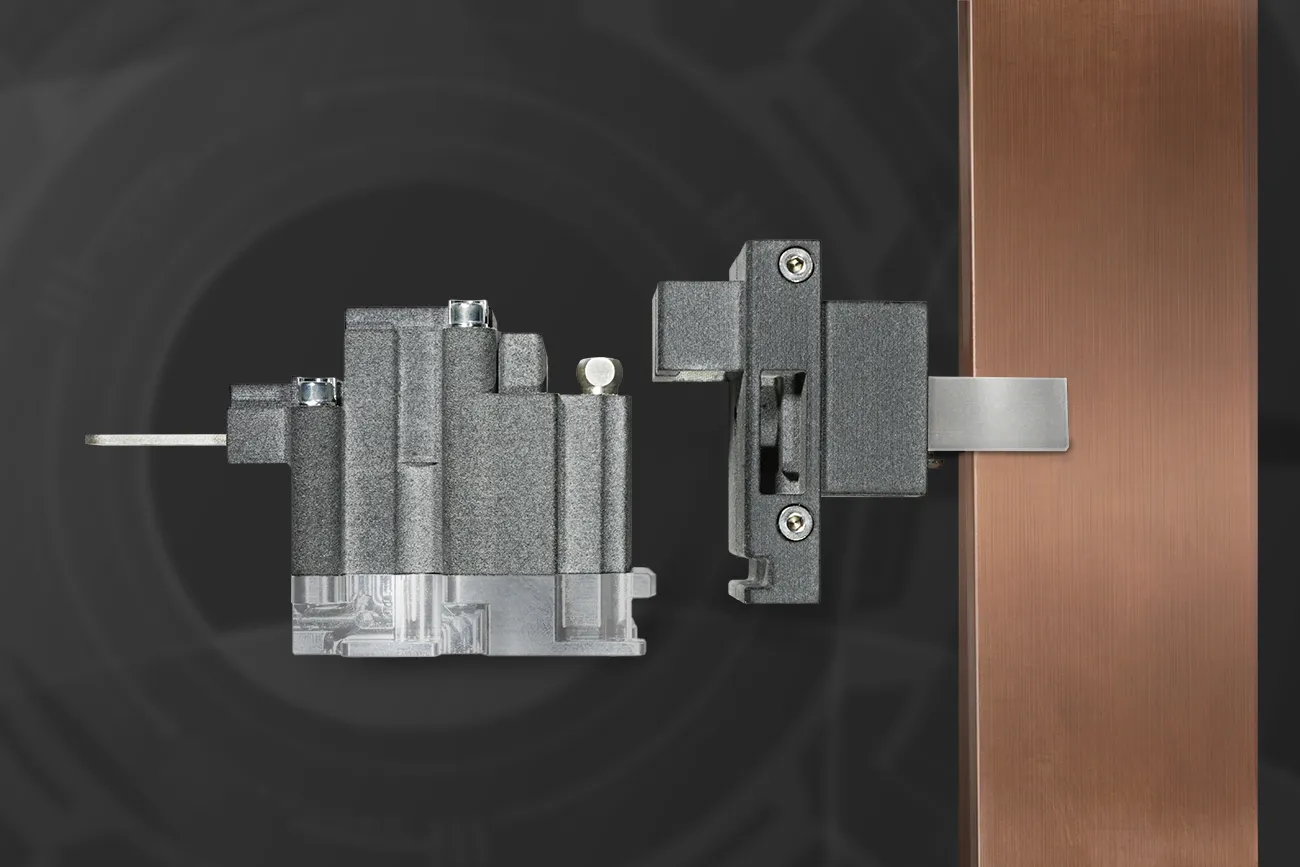

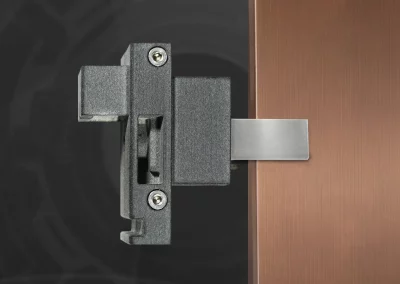

The Power Clip is the key part of the draw-out system. It connects to the vertical busbar strongly and safely  “just like a screw connection” but allows quick and easy operation.

Flexible system design

The modular concept enables highly adaptable configurations:

  • From a simple power tap to a fully withdrawable unit, all based on the same platform
  • Components and functions can be easily combined and extended as required
  • E-CON modular seamlessly adapts to existing busbar systems, ensuring compatibility and easy integration

The contact follows the position of the existing busbars, no matter the height, width or location. The modular design lets you start with a simple power tap and expand to a fully withdrawable unit. You can combine and add components as needed.

E-CON modular system defines a new generation of withdrawable technology.

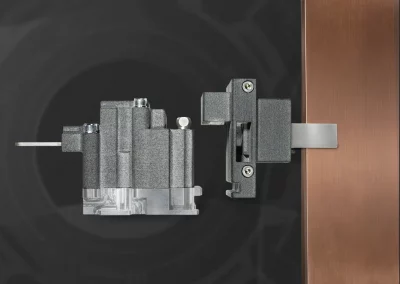

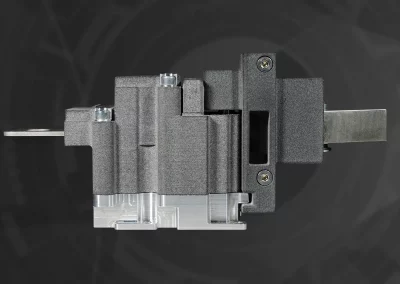

E-CON modular redefines withdrawable technology: modular, highly flexible, and equipped with patented contact technology. Ideal for modern switchgear systems up to 630 A.
E-CON modular redefines withdrawable technology: modular, highly flexible, and equipped with patented contact technology. Ideal for modern switchgear systems up to 630 A.
E-CON modular redefines withdrawable technology: modular, highly flexible, and equipped with patented contact technology. Ideal for modern switchgear systems up to 630 A.
E-CON modular redefines withdrawable technology: modular, highly flexible, and equipped with patented contact technology. Ideal for modern switchgear systems up to 630 A.

E-CON smart

The smart solution for efficient energy tapping
7
E-CON smart | Cost-Efficient Solution for Modern Power Tapping by IDS-Technology GmbH

E-CON smart

(energy-control; smart )

The smart solution for efficient energy tapping

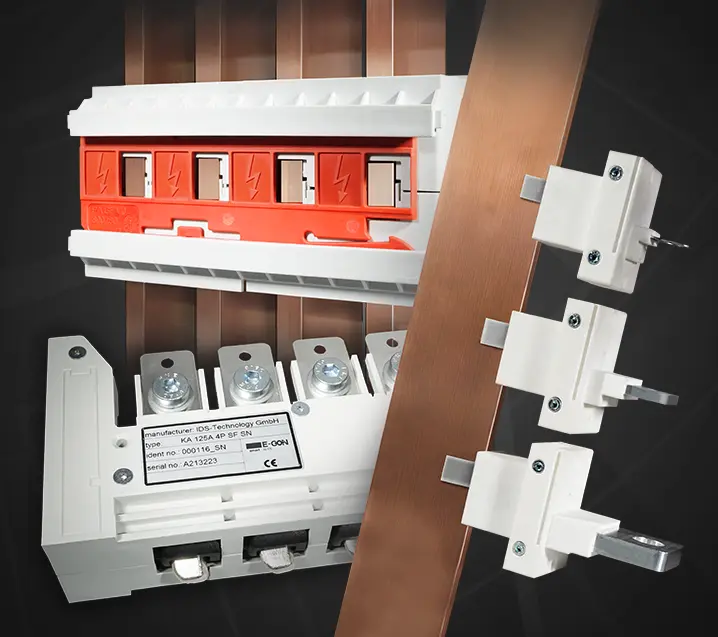

E-CON smart is based on the proven E-CON s.i. product line and the new E-CON modular series.
This product variant offers a cost-effective solution specifically designed for energy tapping from main busbars.

With the same technological foundation, E-CON smart ensures high safety, reliability, and user convenience — while reducing material and installation effort.
The system can be easily integrated into existing installations and provides an economical alternative when a fully withdrawable MCC system is not required.

E-CON smart – the ideal choice for applications where efficiency, cost awareness, and safety are top priorities.

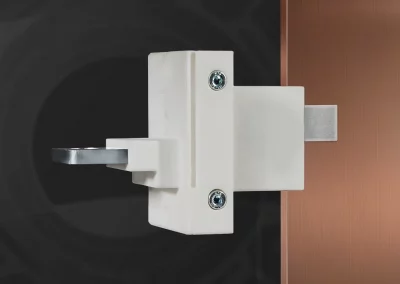

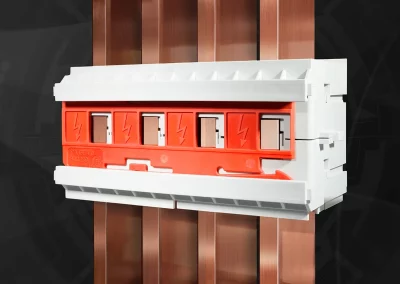

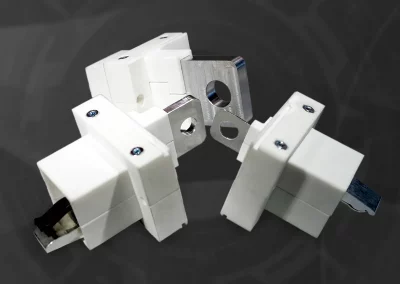

E-CON smart: an efficient and safe solution for tapping energy from main busbars. Cost-effective, easily integratable, and based on E-CON s.i. & E-CON modular technology.
E-CON smart: an efficient and safe solution for tapping energy from main busbars. Cost-effective, easily integratable, and based on E-CON s.i. & E-CON modular technology.
E-CON smart: an efficient and safe solution for tapping energy from main busbars. Cost-effective, easily integratable, and based on E-CON s.i. & E-CON modular technology.
E-CON smart: an efficient and safe solution for tapping energy from main busbars. Cost-effective, easily integratable, and based on E-CON s.i. & E-CON modular technology.
E-CON smart: an efficient and safe solution for tapping energy from main busbars. Cost-effective, easily integratable, and based on E-CON s.i. & E-CON modular technology.

Switchgear components

We offer well-designed and practical switchgear components

7

Switchgear components

In addition to our IDS E-CON system, we offer well-designed and practical switchgear components that ensure maximum safety, flexibility, and operational reliability. Our solutions are specifically developed for professional use in switchgear and control cabinet construction and offer simple installation and high functionality.

IDS-Technology - ELD (Easy Locking Device)

ELD (EASY LOCKING DEVICE)

The ELD (Easy Locking Device) provides a simple, secure, and flexible locking solution for a wide range of applications.
Thanks to the highly flexible Bowden cable, the ELD can be easily mounted on the shaft and routed flexibly to the desired locking position. Its high flexibility allows for quick installation even in confined spaces within electrical cabinets.

Available Bowden cable lengths:

  • 21 cm
  • 25 cm
  • 30 cm
  • 60 cm

Suitable for shaft sizes*:

  • 5 × 5 mm
  • 6 × 6 mm
  • 8 × 8 mm
  • 10 × 10 mm
  • 12 × 12 mm

Your advantages at a glance:

  • Highly flexible Bowden cable
  • Quick and easy installation
  • Available in different lengths
  • Compatible with various shaft sizes
  • Robust and durable design

*This variety of options provides the ELD with maximum adaptability for different installation situations.

IDS-Technology - Code set - mechanical coding system (Coding Device)

CODE SET

Our mechanical coding system (Coding Device) ensures maximum operational safety and reliably prevents incorrect insertions. The system is equipped with three adjustable coding pins. Each individual coding pin offers 10 setting positions (0–9) and can be adjusted easily and conveniently.

By combining 3 pins with 10 positions each, the system provides: 1000 different coding combinations. This ensures that only modules with the correctly set coding can be inserted into the designated slot.

Advantages:

  • Increased system and operational safety
  • Prevention of operating errors



  • up to 1000 coding options
  • Easy adjustment
  • Clear numbering from 0–9
IDS-Technology - Switchgear Components - Unipol busbar modules
Busbar Catalog

BUSBAR SUPPORT UNIPOL

The Unipol busbar modules provide a reliable solution for structured power distribution in modern switchgear systems. They enable compact, safe, and flexible integration into existing power distribution systems and are ideally suited to the equirements of industrial control cabinet construction.

Features of the Unipol busbar modules:

  • Robust industrial design
  • Easy integration



  • Space-saving construction
  • Optimized for power distribution and switchgear applications
